SKU: 60991-2

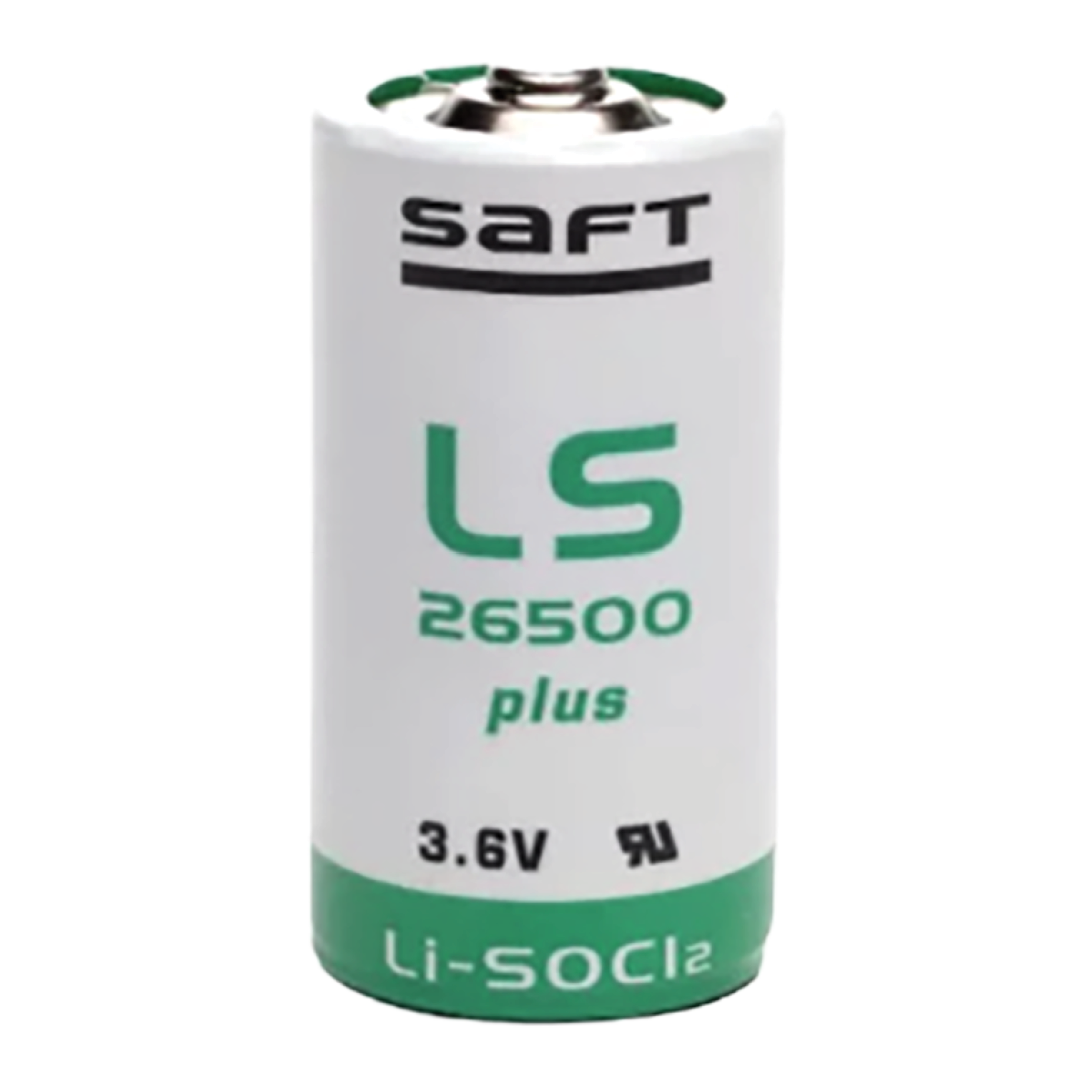

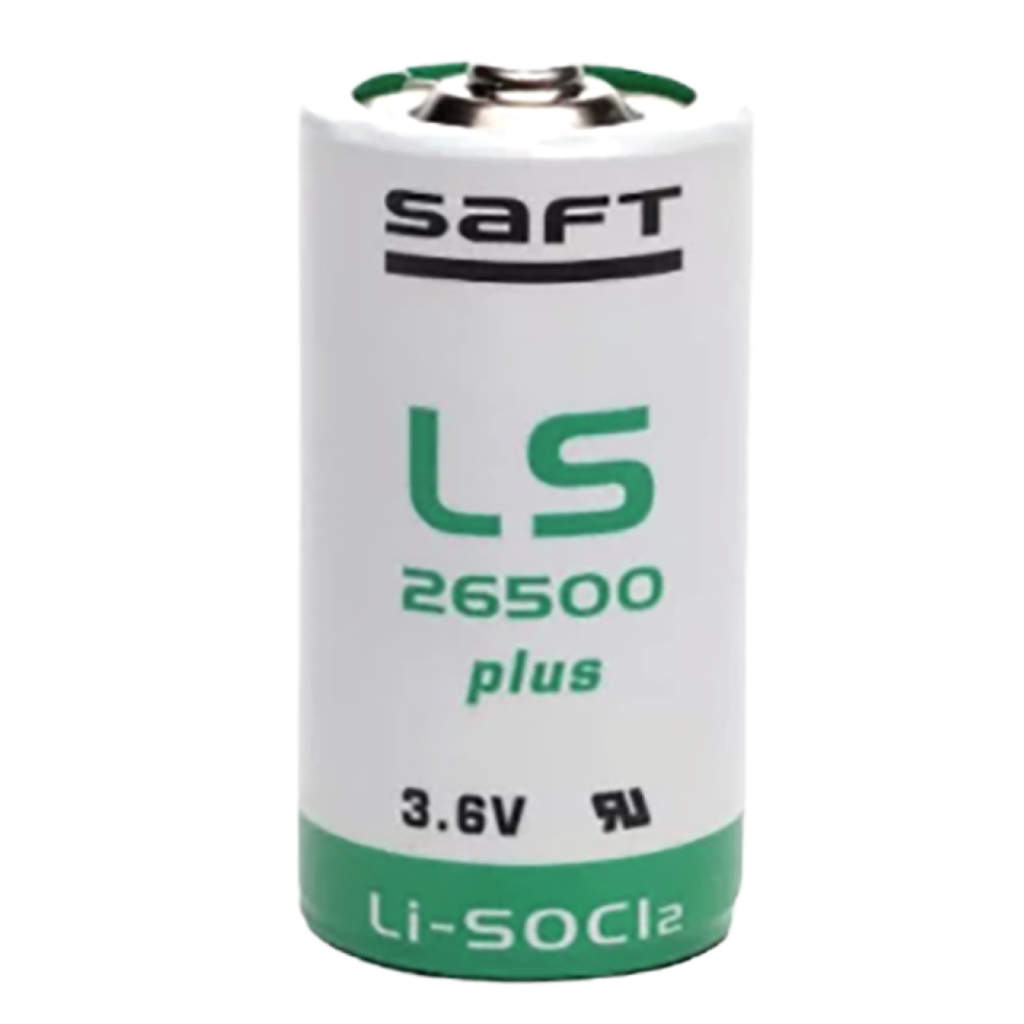

Lithium metal battery – LS26500 plus, Size C

3.6 V Primary lithium-thionyl chloride (Li-SOCl2).

Factory fit options

Factory Fit Options enhance the product’s capabilities. You must specify options at the point of ordering.

The quotation will consist of a complete system i.e. hardware, software & all necessary licenses needed to have a working system.

Categories:

Overview

The 3.6V primary lithium-thionyl chloride (Li/SOCl₂) LS26500 plus battery is used in the Cargolog® 2nd Gen and Cargolog® 3rd Gen, Offline, data loggers. The battery has been selected for its long operating life, low self-discharge rate, and reliable performance over a wide temperature range, making it suitable for long-term transport monitoring applications.   The LS26500 plus battery contains lithium metal and may therefore be classified as dangerous goods during transportation. When shipped, the applicable regulations for lithium metal batteries and battery-powered equipment must be followed.

Specifications

Temperature ranges: -60°C to +85°C / -76°F to +176°F

Storage temperature (max recommended): +30°C / +86°F

Lithium metal content: Approx. 3.8 g

Weight: 45,82g
